Setup guide

Get your device online

Two quick steps to start, then pick your router below for the install walkthrough. The whole thing takes a few minutes — no command line needed.

  1. 1

    Create your first device

    Log into your dashboard at https://kinetic-space.com/fusion and create your first device under your license.

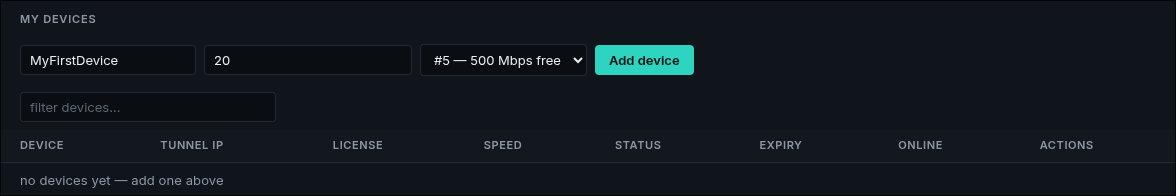

    Dashboard: creating your first device under My Devices
    My Devices → name it, set a speed, pick a license, then Add device.
  2. 2

    Download the package for your device

    In the firmware/package selector on your dashboard, choose your device type and download the matching package.

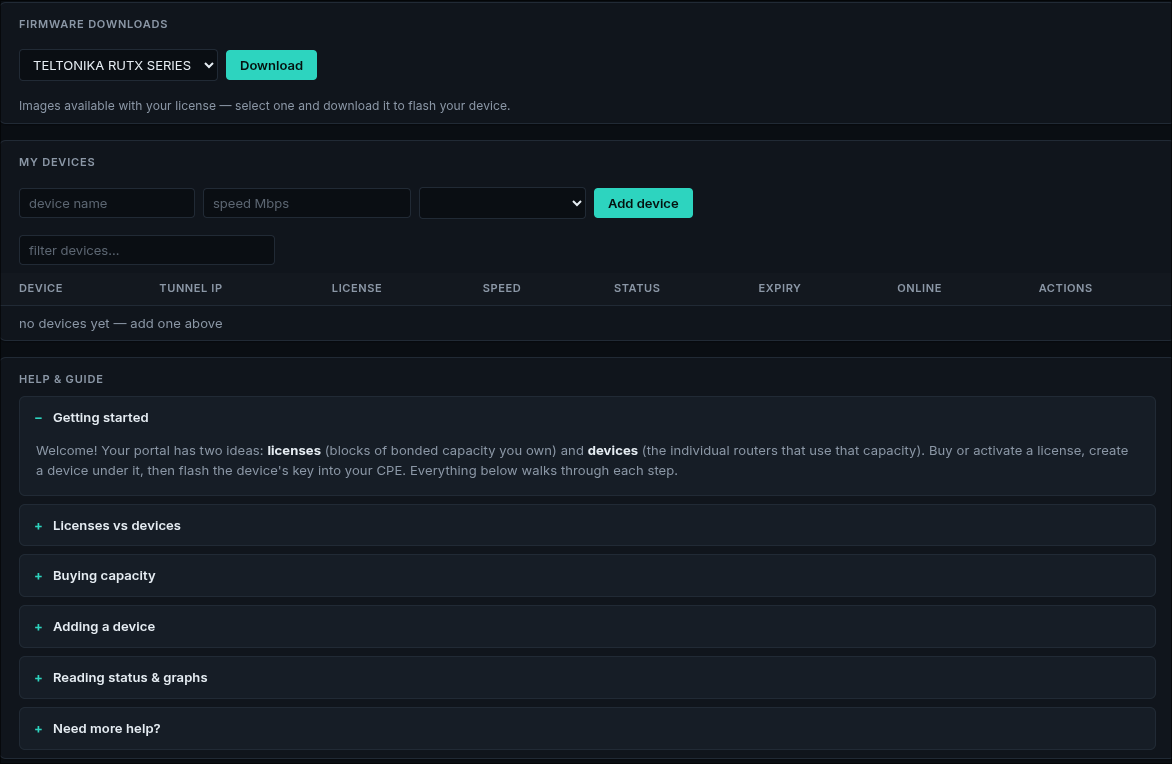

    Dashboard: firmware downloads selector with a Download button
    Firmware downloads → select your device → Download.

Install the package

Pick your router

The upload step differs slightly per device. Choose yours.

Match the firmware first. Make sure your router’s firmware matches the package you downloaded — the dashboard dropdown shows the required firmware version next to each download. Update the device (System → Firmware) if needed before installing.

  1. 1

    Upload the package

    On your device’s web UI, go to System → Package Manager and click Upload package. Select the .tar.gz you downloaded.

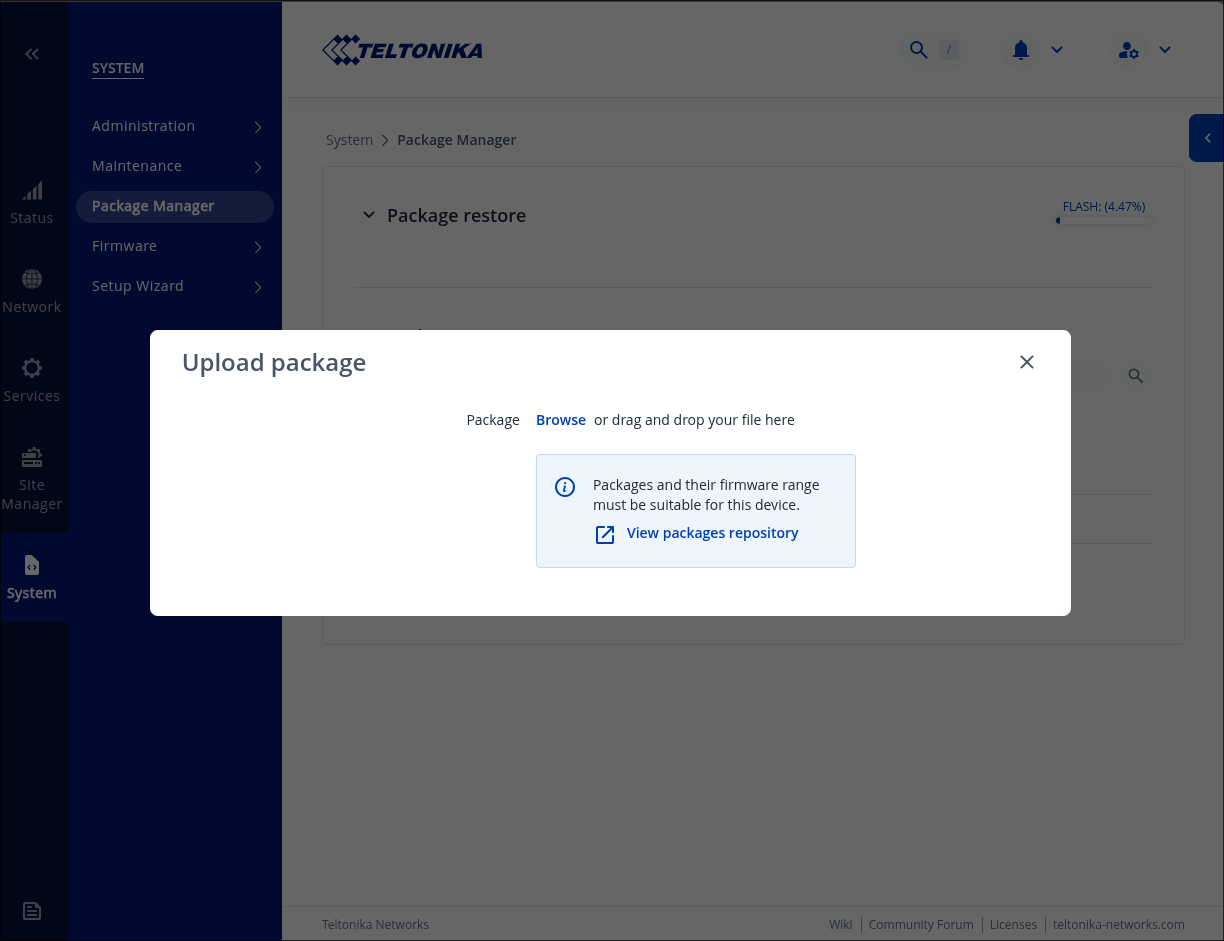

    Teltonika Package Manager: Upload package dialog
    System → Package Manager → Upload package.
  2. 2

    Install anyway

    The package validates but isn’t Teltonika-signed — that’s expected. Click Install anyway.

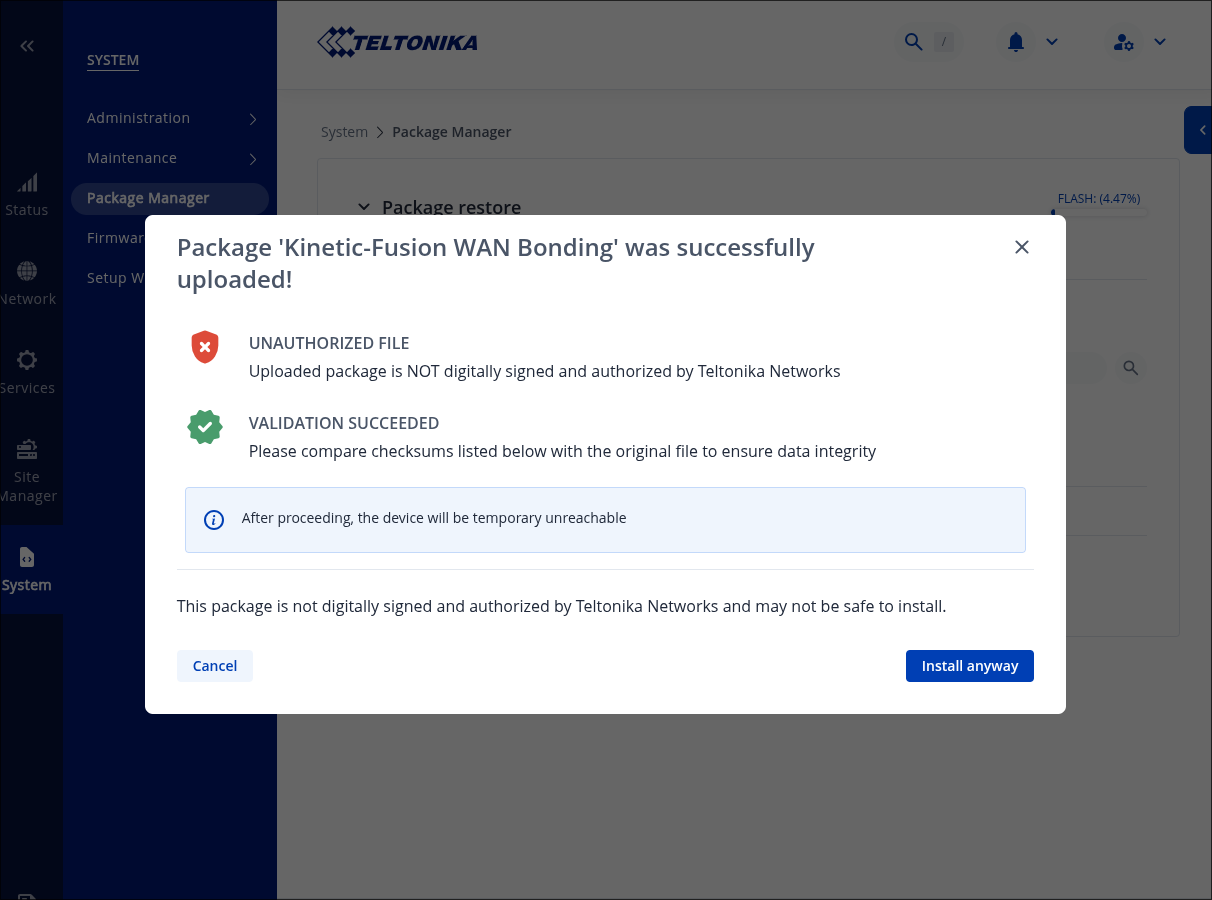

    Teltonika: package uploaded successfully, Install anyway button
    “Validation succeeded” → Install anyway.
  3. 3

    If it says the install failed, that’s OK

    You may see an install-failed message — no worries, the package is in place. Just click Cancel and proceed to the next step. This is a Teltonika package manager compatability issue we are actively working on.

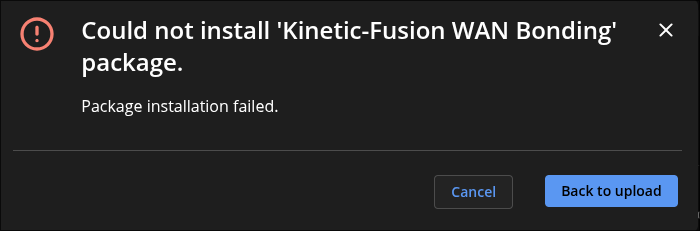

    Teltonika: could not install package message - safe to cancel
    Harmless — click Cancel.

Final step

Open the control panel & activate

Same for every router. Reach your device’s KineticFusion control panel, paste in your license, and it comes online automatically.

  1. 1

    Open your device’s control panel

    Take the address you used to reach your router’s web UI (for example 192.168.1.1) and add :8088 to the end — so 192.168.1.1:8088. That opens the KineticFusion management page for the device.

  2. 2

    Copy the license code from your dashboard

    Back on your dashboard, find the device you created and copy its license code.

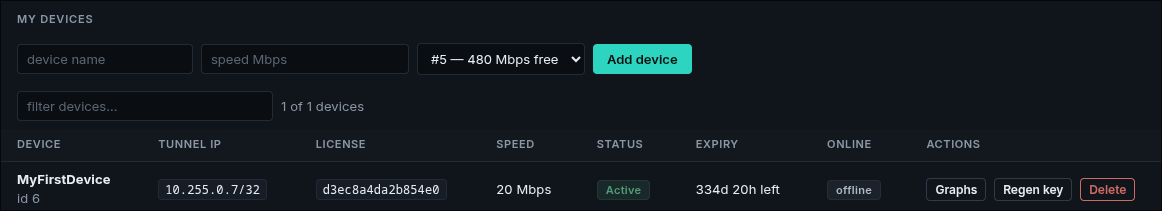

    Dashboard: your first device row showing its license code to copy
    My Devices → copy the License value for your device.
  3. 3

    Paste it in and activate

    On the device’s control panel, scroll to the Controls section, paste the code into the License code field, and click Set & activate. The bond comes up on its own once central assigns the device its identity.

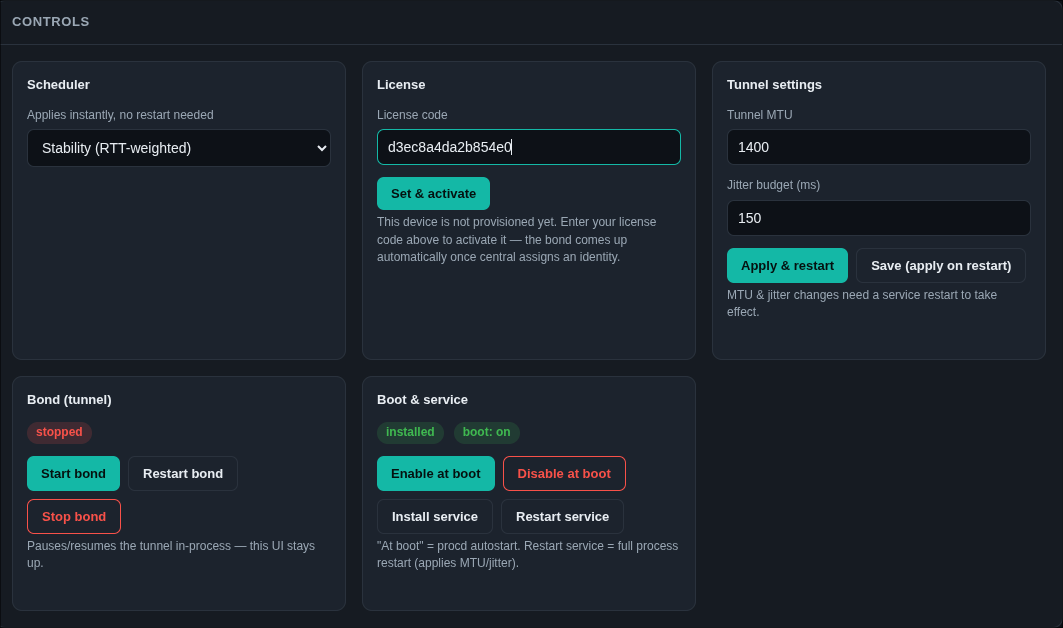

    Device control panel: License code field with Set & activate button
    Controls → License code → Set & activate.
